Electric Thruster 100kgf 12V
General features:
- Protection cover for electrical components.
- Easily accessible battery connection terminals.
- Waterproof and latch lock connector for the control panel. A 100% guaranteed connection also in case of vibrations.
- Motor temperature protection switch.
- 5A circuit breaker for the control panel.
- Brass tail piece.
- Replaceable zinc or aluminium anode.
- Flexible coupling to absorb vibrations.
- Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
- FAN for extra cooling.
| Product code | BA.185.10012 |
|---|---|
Thrust force @ 10.5V Starting peak force (1.5 sec) | 100 kgf 150 kgf (peak) |
| Tunnel diameter | 185 mm |
| Electric motor | 6 kW (8.1 hp) 12 V DC |
| Temperature switch | Yes |
| Operating Time | 2 min/hour |
| Current Consumption | 730 A |
| Min. Battery Capacity | 2*200 Ah |
| Fuse slow-blow (ANL) | 500 A |
| Battery cable, total length of plus and minus | 0-8 m / 95 mm2 8-11 m / 120 mm2 |
| Battery connection | M10 |
| Weight (motor incl. tail piece) | 26.8 kg |
| Motor body IP rating | IP21 |
| Articlecode | Downloads |
|---|---|
| BA.185.10012 |     |
| BA.185.10012 |  |
|---|---|

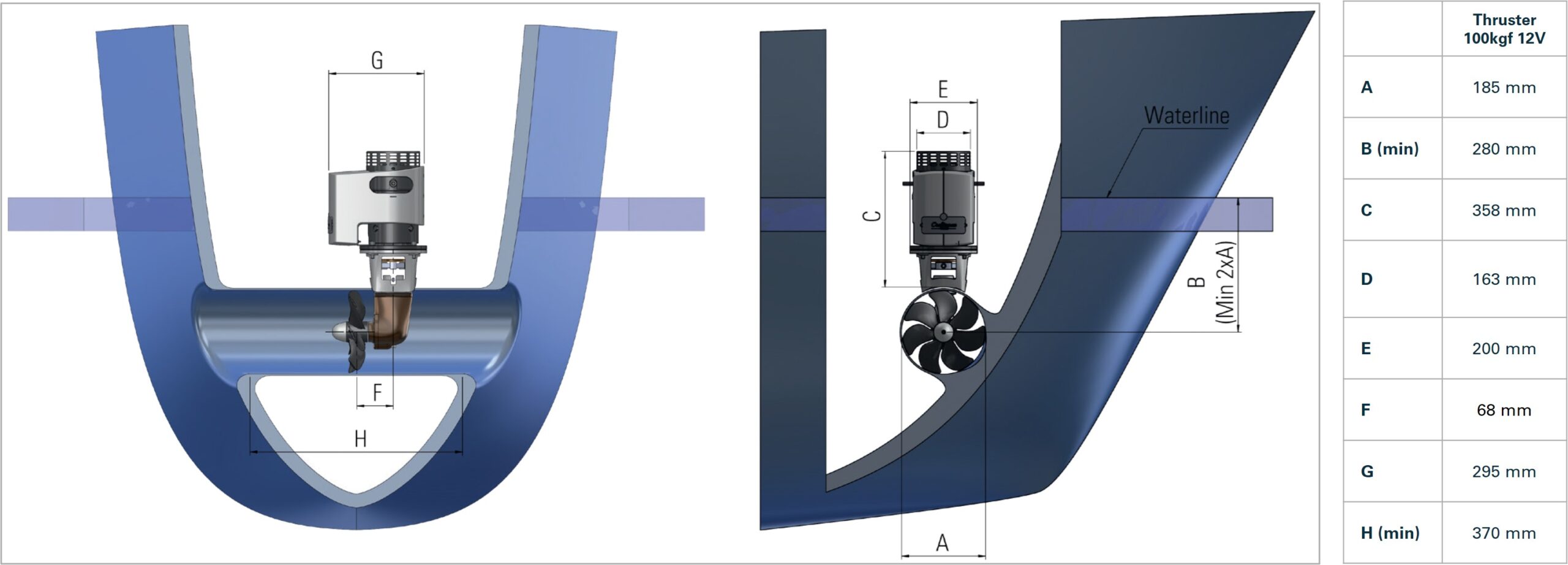

| Thruster drill patern | |
