Craftsman

Soundlock

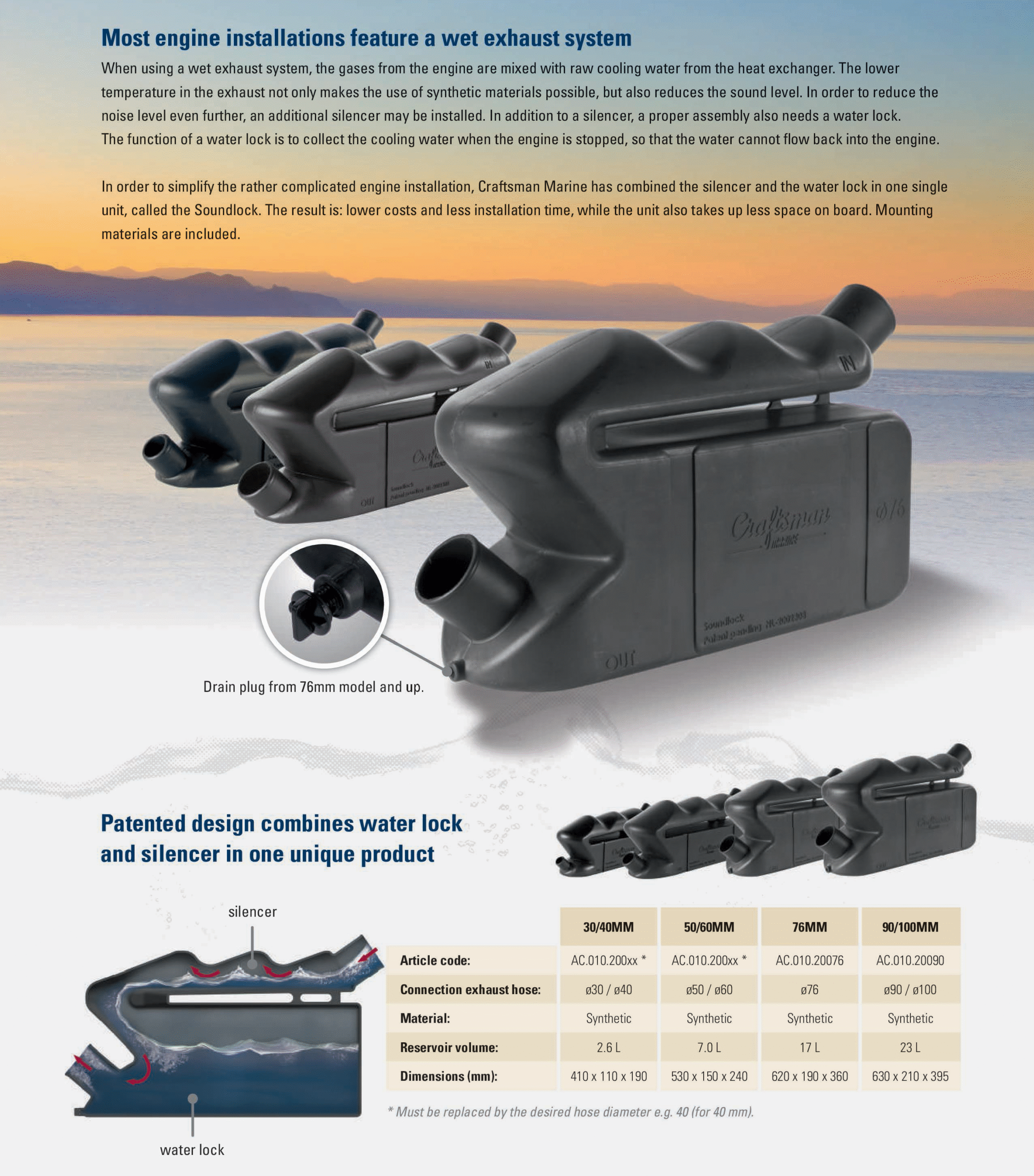

Craftsman Marine has developed a totally new concept for its exhaust assemblies, resulting in a drastically reduced installation time.

One of the primary functions of the Craftsman Marine Soundlock is its great sound reducing capability. On top of that, the unit serves as a reservoir for the raw cooling water, running to the engine when it is stopped.This combination of two important functions results in a space and time saving installation.
Our Soundlock is patented and available for 5 different hose diameters.



MaterialHDPE





Article codeHose ConnectionReservoir VolumeDimensions LxWxHDownloads
AC.010.20030ø30 mm2,6 l410x110x190 mmSoundlock ø30 Soundlock ø30 Soundlock ø30 Soundlock ø30
AC.010.20040ø30/ø40 mm2,6 l410x110x190 mmSoundlock ø40 Soundlock ø40 Soundlock ø40 Soundlock ø40
AC.010.20060ø50/ø60 mm7,0 l530x150x240 mmSoundlock ø60 Soundlock ø60 Soundlock ø60 Soundlock ø60
AC.010.20076ø76 mm17 l620x190x360 mmSoundlock ø76 Soundlock ø76 Soundlock ø76 Soundlock ø76
