Electric Thruster 60kfg, 12V
| Product code | BA.150.06012 |
|---|---|
| Average thrust force @ 10.5V Starting peak force (1.5 sec.) | 60 kfg 95 kfg (peak) |

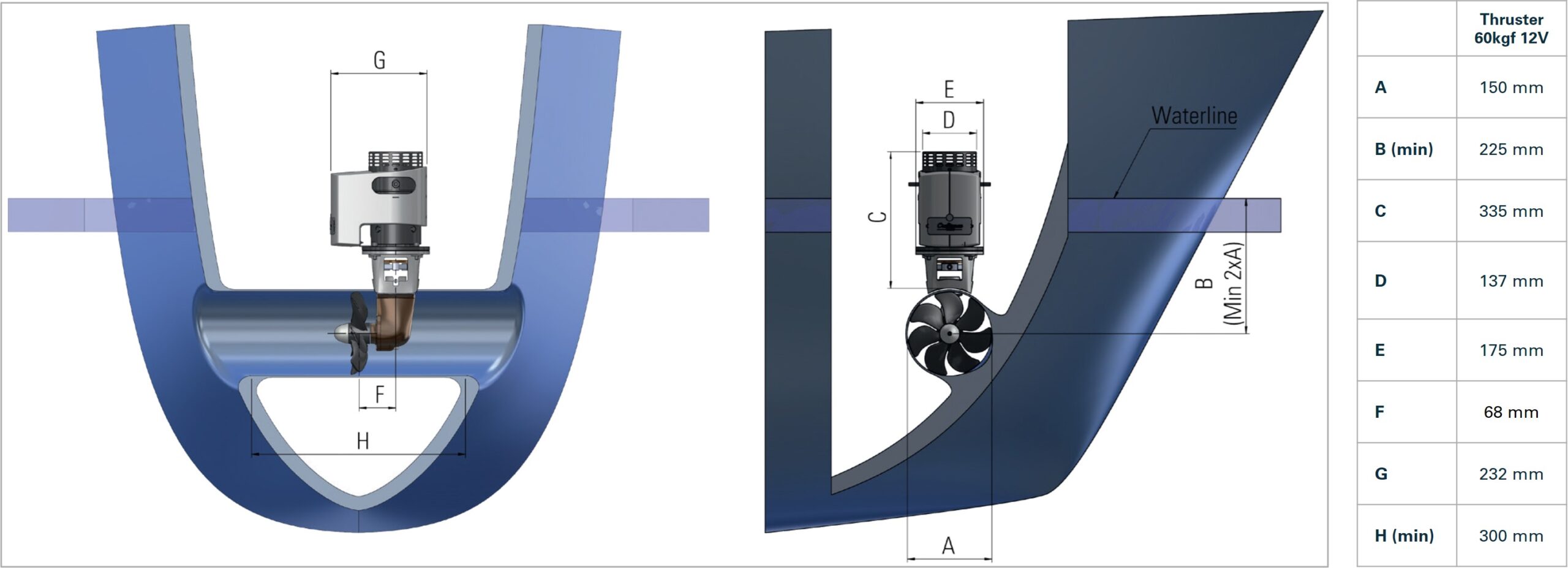

| Tunnel Diameter | 150mm |

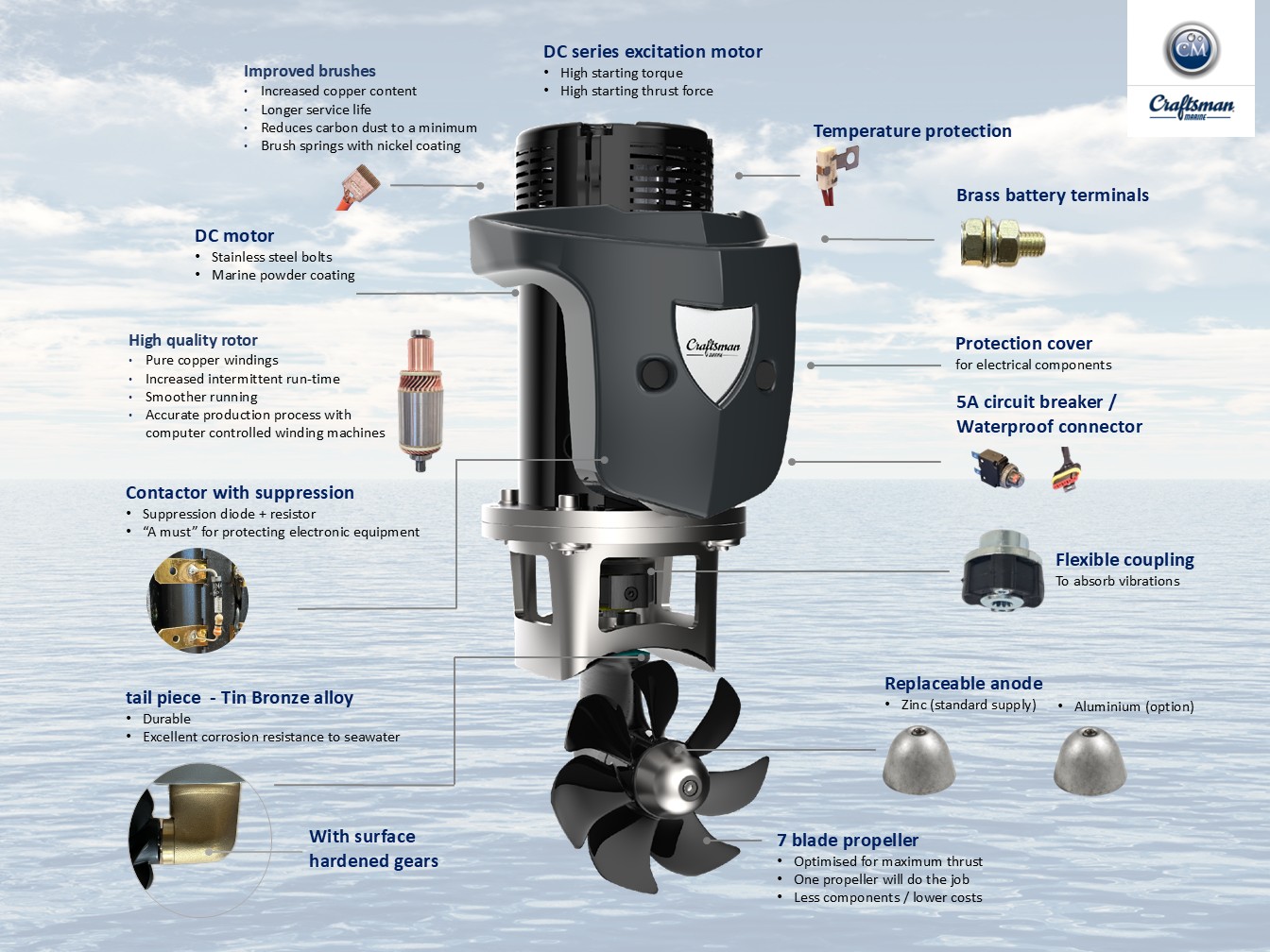

| Electric Motor | DC series excitation 3.7kW (5 hp) 12 V |
| Motor Temperature Protection | Yes |
| Operation Time Continuous use Intermittent use | 2 minutes/hour 8 minutes |
| Current consumption | 460 A |
| Min. Battery Capacity | 160 Ah |
| Main Fuse (ANL, Slow Blow) | 300 A |
| Battery cable, total length of plus and minus * | 7-10 m / 70 mm2 10-14 m / 95 mm2 |
| Battery terminal connection | M10 |
| Weight | 17.67 kg |
