Electric Thruster 28kgf, 12V
| Product code | BA.110.02812 |
|---|---|
| Average thrust force @ 10.5V Starting peak force (1.5 sec.) | 28 kfg 45 kfg (peak) |

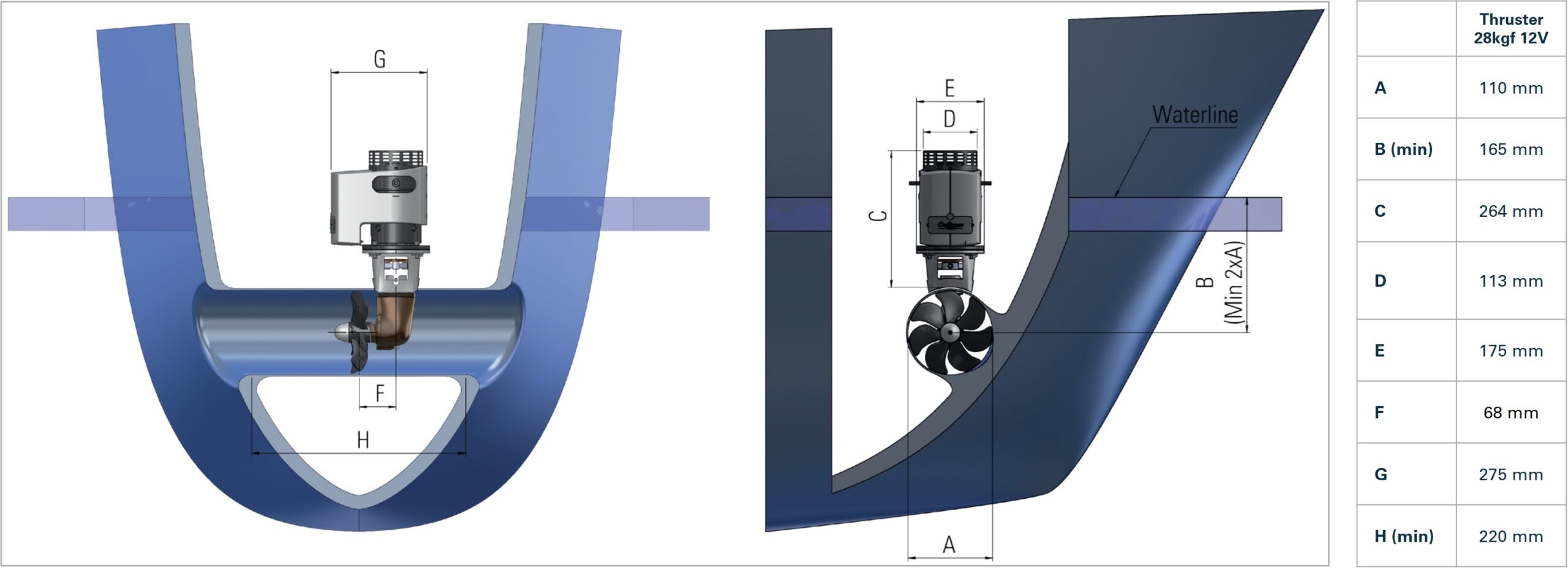

| Tunnel Diameter | 110mm |
| Electric Motor | DC series excitation 1.6kW (2.2 hp) 12 V |
| Motor Temperature Protection | Yes |
| Operation Time Continuous use Intermittent use | 2 minutes/hour 10 minutes |
| Current consumption | 190 A |
| Min. Battery Capacity | 110 Ah |
| Main Fuse (ANL, Slow Blow) | 125 A |
| Battery cable, total length of plus and minus * | 0-12 m / 35 mm2 12-18 m / 50 mm2 |
| Battery terminal connection | M8 |
| Weight | 10.63 kg |
